Chillers and Coolers
PolyScience Chillers and Coolers have proven, over several decades and hundreds of thousands of installations, that they are the most reliable in the industry — and an exceptionally smart choice for end-user and OEM applications ranging from lasers and analytical equipment to reactors and manufacturing equipment.
To learn more about our Chillers and Coolers, download our free information guide here!

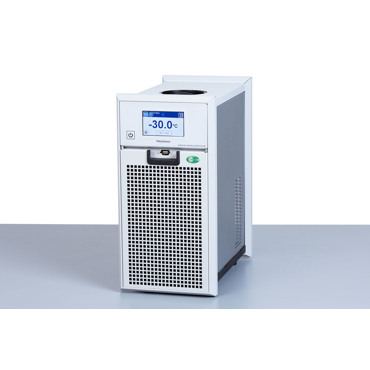

Benchtop Chillers -
LM Series -10° to +30°C
Key Specifications
Working Temperature: -10° to +30°C
Temperature Stability: ±0.1°C
Cooling Capacity: Up to 560 watts @ 20°C
Features
- Optimized for performance at low temperatures
- Ideal for benchtop rotary evaporators
- Large, easy to read LED display
- Space-saving design
- Cooling at ambient temperatures as high as 30°C
- Low flow shutoff and alarm, high and low temperature alarms
- Simple setup, operation, and maintenance
- Choice of two different centrifugal pumps
- Fluid level indicator
- RS232 communication and external water filter optional
Performance Specifications & Part Numbers
| LM Series Chiller, Centrifugal Pump | LM Series Chiller, Centrifugal Pump | |
|---|---|---|
| Working Temperature Range | -10° to 30° C | -10° to 30° C |
| Temperature Stability | ±0.1° C | ±0.1° C |
| Pump Type |
Centrifugal |
Centrifugal |
| Cooling Capacity @ -10°C | 170 W (60Hz)/110 W (50Hz) | 230 W (60Hz)/140 W (50Hz) |
| Cooling Capacity @ 0°C | 250 W (60Hz)/170 W (50Hz) | 350 W (60Hz)/250 W (50Hz) |
| Cooling Capacity @ +10°C | 340 W (60Hz)/280 W (50Hz) | 470 W (60Hz)/390 W (50Hz) |
| Cooling Capacity @ +20°C | 420 W (60Hz)/390 W (50Hz) | 560 W (60Hz)/520 W (50Hz) |
| Cooling Capacity @ +30°C | 540 W (60Hz)/500 W (50Hz) | 650 W (60Hz)/600 W (50Hz) |
| Maximum Pressure | 14.50 psi (60Hz)/12.50 psi (50Hz) | 5.10 psi (60Hz)/4.40 psi (50Hz) |
| Maximum Pressure Flow Rate | 3.50 gpm (60Hz)/3.00 gpm (50Hz) | 2.10 gpm (60Hz)/1.80 gpm (50Hz) |
| 60Hz Part Number |
LM61MX1A110C |
LM61GX1A110C |
| 50Hz Part Number |
LM62MY1A110E |
LM62GY1A110E |
