An economical alternative to integrated heating baths for liquid temperatures up to 150°C.

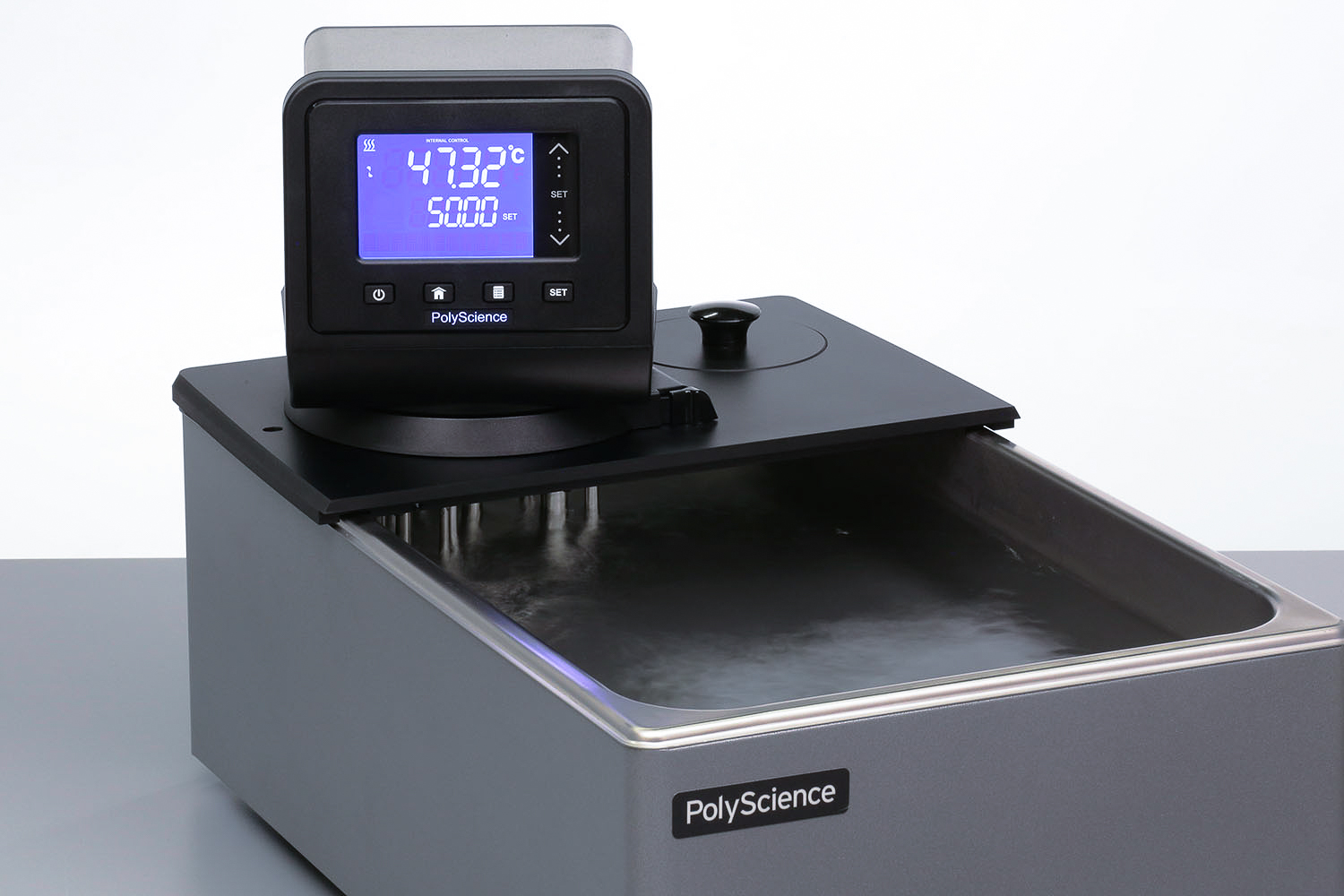

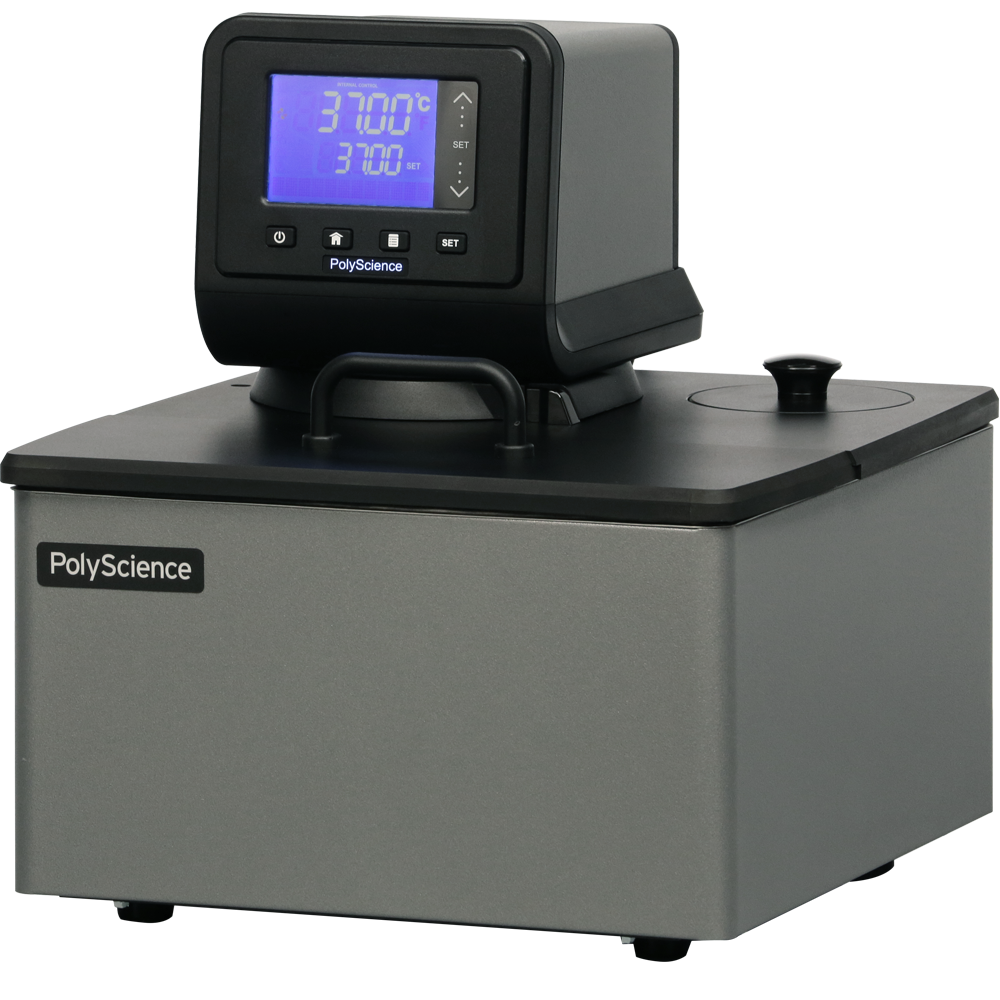

Our Stainless Steel Open Baths feature a controller bridge that rests securely on the deep drawn stainless steel reservoir, yet is easily removed for tank cleaning. The generous bath opening provides ready access to samples and the included bath cover improves stability. Our large SmartTouch display provides a clear view and easy operation with access to selectable home screens and on-screen help. The circulator features time and date event scheduling and automatic and user-adjustable performance optimization.
To learn more about our Stainless Steel Open Bath Systems, download our free information guide here!
Features
- Working temperatures from ambient +10° up to 150°C

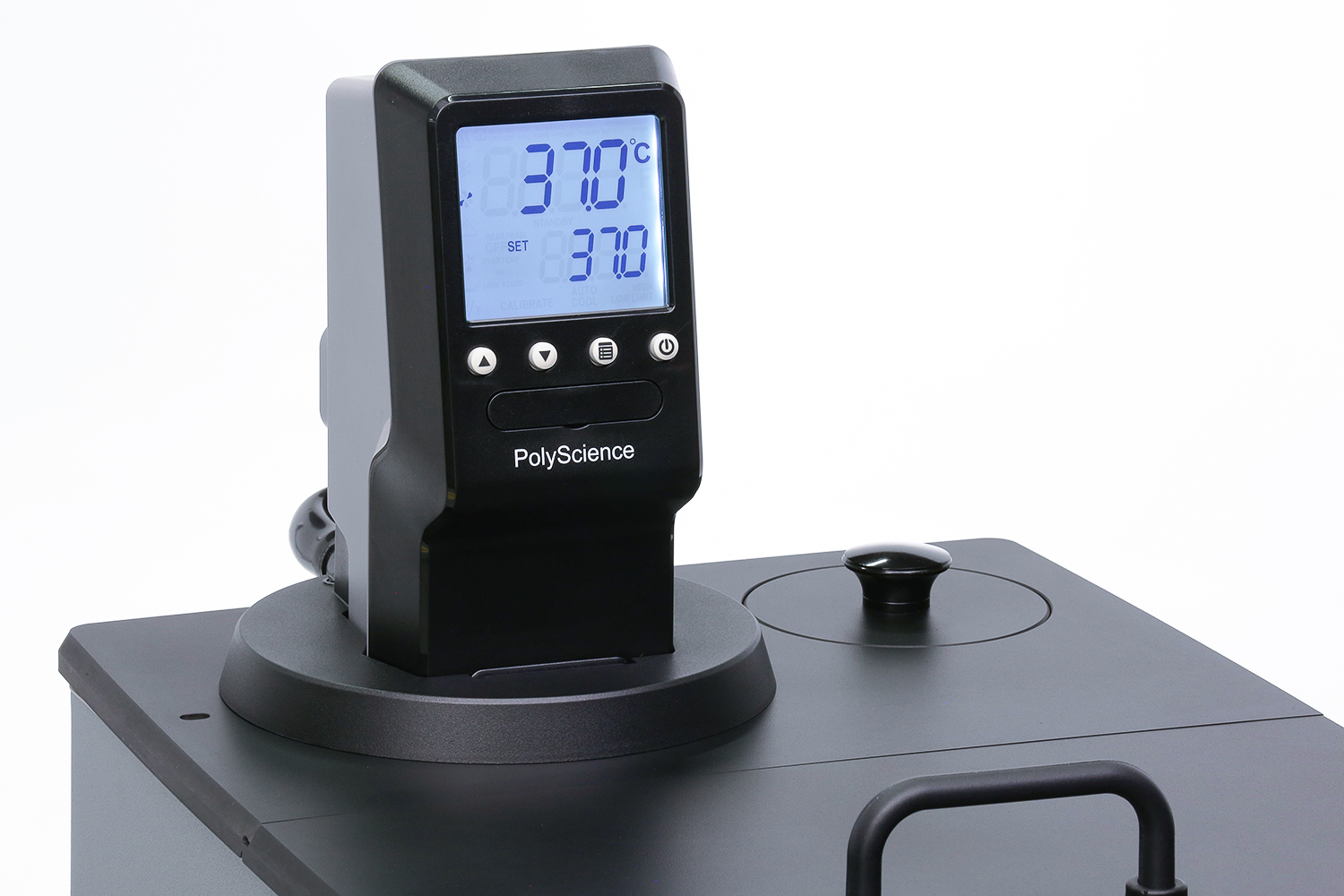

- Advanced Programmable, Advanced Digital or MX Temperature Controller
- 6, 10, 20 or 28 liter reservoir
- DuraTop™ Chemical Resistant Bridge, Swivel 180™ Rotating Controller (on Advanced Programmable and Advanced Digital models)
- Lidded opening for optional cooling coil (10, 20 and 28 liter models)
- External circulation capability
- Complies with DIN 12876-1 Class I safety requirements for use with non-flammable liquids
- Includes bath cover for improved stability
12 Products
AP
More Options Available
Stainless Steel Open Bath System 6 Liter, AP
AP
More Options Available
Stainless Steel Open Bath System 10 Liter, AP
AP
More Options Available
Stainless Steel Open Bath System 20 Liter, AP
AP
More Options Available
Stainless Steel Open Bath System 28 Liter, AP
Maximum Ambient Temperature °C
35°
35°
35°
35°
Part Number for 60 Hz Model
AP06S150-A11B
AP10S150-A11B
AP20S150-A11B
AP28S150-A11B
Part Number for 50 Hz Model
AP06S150-A12E
AP10S150-A12E
AP20S150-A12E
AP28S150-A12E
Temperature Stability °C
±0.005°
±0.005°
±0.005°
±0.005°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
9.9 x 25.5 x 15.2 cm
26.4 x 22.8 x 15.2 cm
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 37.8 cm
35.3 x 34.2 x 37.8 cm
53.1 x 34.2 x 37.8 cm
53.1 x 34.2 x 42.9 cm
AD
More Options Available
Stainless Steel Open Bath System 6 Liter, AD
AD
More Options Available
Stainless Steel Open Bath System 10 Liter, AD
AD
More Options Available
Stainless Steel Open Bath System 20 Liter, AD
AD
More Options Available
Stainless Steel Open Bath System 28 Liter, AD
Maximum Ambient Temperature °C
35°
35°
35°
35°
Part Number for 60 Hz Model
AD06S150-A11B
AD10S150-A11B
AD20S150-A11B
AD28S150-A11B
Part Number for 50 Hz Model
AD06S150-A12E
AD10S150-A12E
AD20S150-A12E
AD28S150-A12E
Temperature Stability °C
±0.01°
±0.01°
±0.01°
±0.01°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
9.9 x 25.5 x 15.2 cm
26.4 x 22.8 x 15.2 cm
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 37.8 cm
35.3 x 34.2 x 37.8 cm
53.1 x 34.2 x 37.8 cm
53.1 x 34.2 x 42.9 cm
MX
More Options Available
Stainless Steel Open Bath System 6 Liter, MX
MX
More Options Available
Stainless Steel Open Bath System 10 Liter, MX
MX
More Options Available
Stainless Steel Open Bath System 20 Liter, MX
MX
More Options Available
Stainless Steel Open Bath System 28 Liter, MX
Maximum Ambient Temperature °C
35°
35°
35°
35°
Part Number for 60 Hz Model
MX06S135-A11B
MX10S135-A11B
MX20S135-A11B
MX28S135-A11B
Part Number for 50 Hz Model
MX06S135-A12E
MX10S135-A12E
MX20S135-A12E
MX28S135-A12E
Temperature Stability °C
±0.07°
±0.07°
±0.07°
±0.07°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
9.9 x 25.5 x 15.2 cm
26.4 x 22.8 x 15.2 cm
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 40.6 cm
35.3 x 34.2 x 40.6 cm
53.1 x 34.2 x 40.6 cm
53.1 x 34.2 x 45.7 cm
AP
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AP06S150-A11B
Part Number for 50 Hz Model
AP06S150-A12E
Temperature Stability °C
±0.005°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 37.8 cm
AP
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AP10S150-A11B
Part Number for 50 Hz Model
AP10S150-A12E
Temperature Stability °C
±0.005°
Working Access (L x W x D) (cm)
9.9 x 25.5 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
35.3 x 34.2 x 37.8 cm
AP
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AP20S150-A11B
Part Number for 50 Hz Model
AP20S150-A12E
Temperature Stability °C
±0.005°
Working Access (L x W x D) (cm)
26.4 x 22.8 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 37.8 cm
AP
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AP28S150-A11B
Part Number for 50 Hz Model
AP28S150-A12E
Temperature Stability °C
±0.005°
Working Access (L x W x D) (cm)
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 42.9 cm
AD
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AD06S150-A11B
Part Number for 50 Hz Model
AD06S150-A12E
Temperature Stability °C
±0.01°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 37.8 cm
AD
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AD10S150-A11B
Part Number for 50 Hz Model
AD10S150-A12E
Temperature Stability °C
±0.01°
Working Access (L x W x D) (cm)
9.9 x 25.5 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
35.3 x 34.2 x 37.8 cm
AD
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AD20S150-A11B
Part Number for 50 Hz Model
AD20S150-A12E
Temperature Stability °C
±0.01°
Working Access (L x W x D) (cm)
26.4 x 22.8 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 37.8 cm
AD
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
AD28S150-A11B
Part Number for 50 Hz Model
AD28S150-A12E
Temperature Stability °C
±0.01°
Working Access (L x W x D) (cm)
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 42.9 cm
MX
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
MX06S135-A11B
Part Number for 50 Hz Model
MX06S135-A12E
Temperature Stability °C
±0.07°
Working Access (L x W x D) (cm)
10 x 11 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
34 x 20.6 x 40.6 cm
MX
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
MX10S135-A11B
Part Number for 50 Hz Model
MX10S135-A12E
Temperature Stability °C
±0.07°
Working Access (L x W x D) (cm)
9.9 x 25.5 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
35.3 x 34.2 x 40.6 cm
MX
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
MX20S135-A11B
Part Number for 50 Hz Model
MX20S135-A12E
Temperature Stability °C
±0.07°
Working Access (L x W x D) (cm)
26.4 x 22.8 x 15.2 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 40.6 cm
MX
More Options Available
Maximum Ambient Temperature °C
35°
Part Number for 60 Hz Model
MX28S135-A11B
Part Number for 50 Hz Model
MX28S135-A12E
Temperature Stability °C
±0.07°
Working Access (L x W x D) (cm)
25.7 x 21.4 x 20.3 cm
Overall Dimensions (L x W x D) (cm)
53.1 x 34.2 x 45.7 cm
Benefits

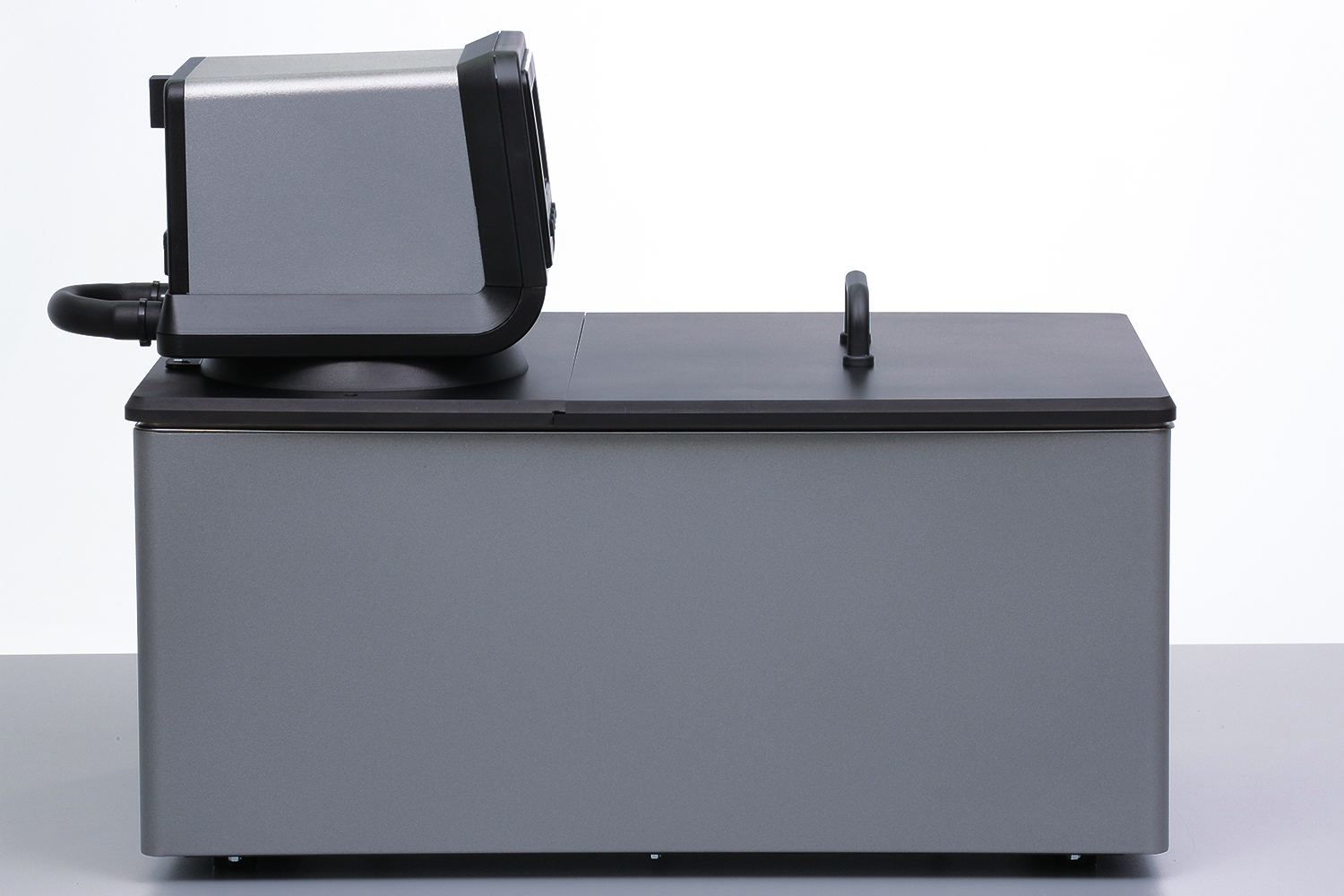

Swivel 180™
Need to position your bath at a different angle or read the temperature from across the room? We've got it covered. The patented Swivel 180™ Rotating Controller on PolyScience Circulating Baths lets you move the extra large temperature display independently from the bath, enabling you to clearly read the display from anywhere within a 180° viewing radius, with the press of a button.
Intuitive and Precise

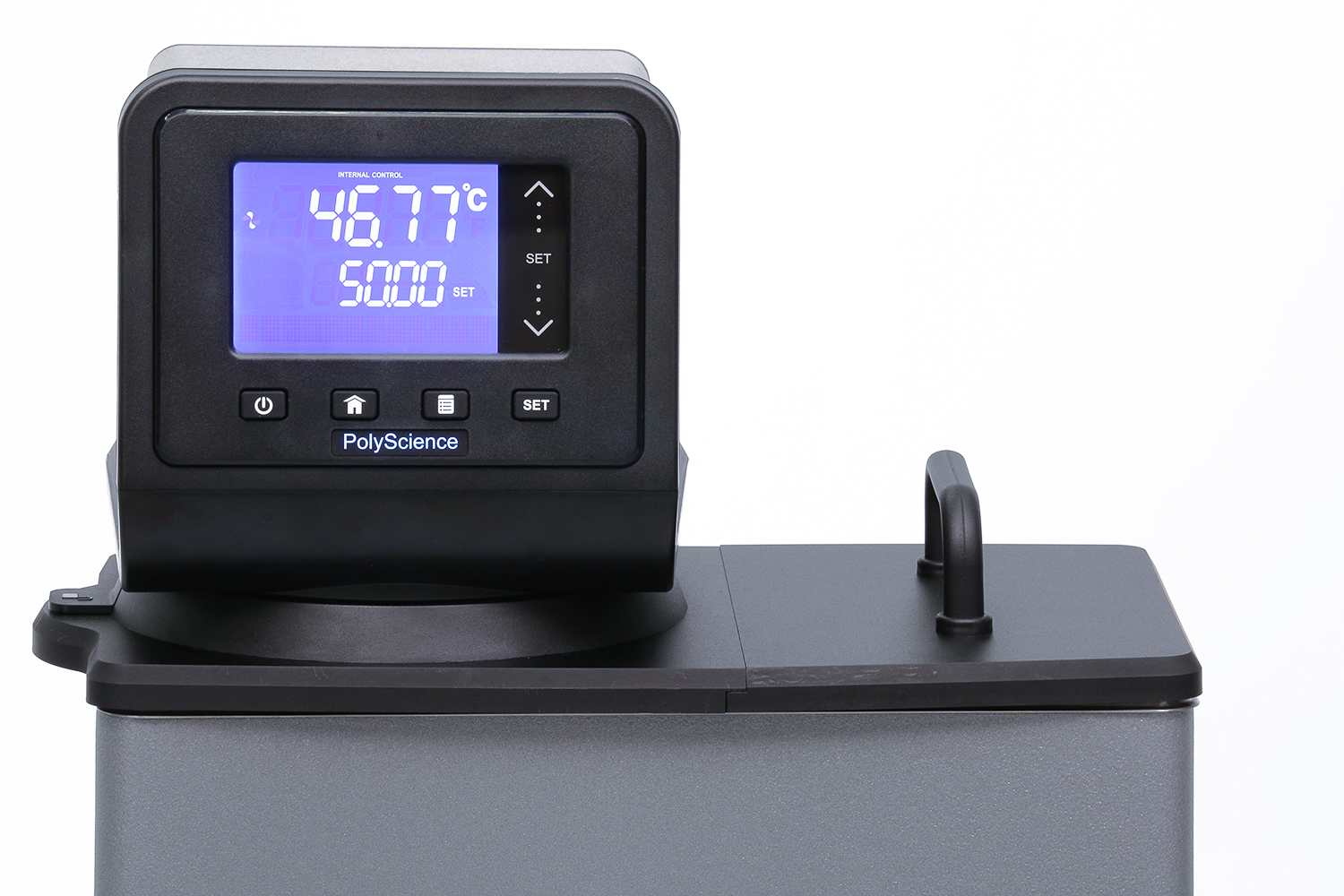

Our controllers display it all: internal bath temperature, external bath temperature, set-point and more–all on one easy to read screen.
Whether equipped with the entry-level controller or our most sophisticated icon-driven SmartTouch™ interface controller, PolyScience units are extremely easy to use. Clear navigational buttons and menu prompts guide you through setup, making operational and temperature set-point changes simple and precise.
Advanced Programmable temperature controllers guide you through setup and operation using universal icons, on-screen help and logical menus.
