A Great Partner for Your Lab
From the sleek, contemporary profile to the ultra-intuitive interface, we have created a better breed of temperature controllers. Easy to use, informative, and connected, we have designed a stable, reliable and precise partner for your lab bench.
Features:
- Intuitive, icon-driven operation
- Complete operating information displayed on a single screen
- Large, easy to read displays
- Multiple connectivity options
- Temperature stability as precise as ±0.005°C
- Customizable features and functions
To learn more about our Circulating Baths, download our free information guide here!
Advanced Programmable (AP) |
Advanced Digital (AD) |
Standard Digital (SD) |
MX |
|
| Maximum Temperature | 200°C | 200°C | 170°C | 135°C |
|---|---|---|---|---|
| Temperature Stability | ±0.005°C | ±0.01°C | ±0.04°C | ±0.07°C |
| Pump Type | Pressure/Suction, Variable-Speed | Pressure/Suction, Variable-Speed | Pressure Only, 2-Speed | Pressure Only, 1-Speed |
| Programmability | Unlimited programs and steps | N/A | N/A | N/A |
| Connectivity |
USB, Ethernet, RS-232/RS-485, Remote On/Off, External Temperature Probe |
USB-A & B, Ethernet, RS-232/RS-485, External Temperature Probe | RS-232 | N/A |

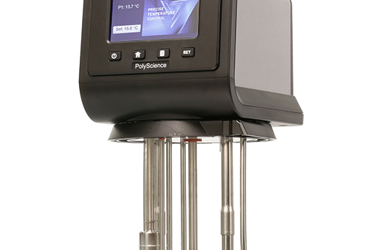

KEY SPECIFICATIONS
Working Temperature: 200°C maximum temperature
Temperature Stability: ±0.005°C
Safety Rating: DIN 12876-1 Class III (for use with flammable liquids)
External Temperature Control Capability: Yes
Pump: Variable-speed
External Circulation: Open- or closed-loop
Key Features

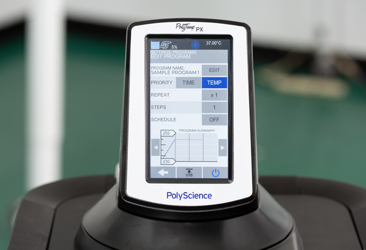

- Time/temperature programming (Open-mode programs)

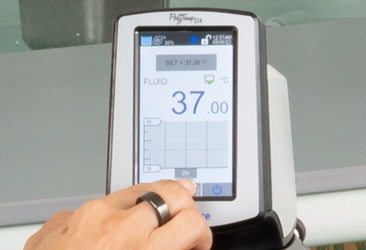

- Intuitive 4.3” (10.9 cm) SmartTouch display
- 11 languages: French, German, Spanish, Chinese, Portuguese, Russian, Hindi, Arabic, Italian, Korean, English
- Variable speed pump with open- and closed-loop external circulation capability
- Swivel 180™ Rotating Controller
- On-board connectivity: USB, Ethernet, RS-232/RS-485, remote on/off and external temperature probe
- Event scheduling (time & date) with real-time clock
- Review temperature trends for up to 10 days
- Multiple selectable “home” screens
- On-screen help
- Automatic and/or user-adjustable performance optimization
- 10-point calibration capability

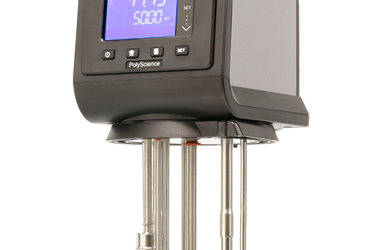

Key Specifications
Working Temperature: 200°C maximum temperature
Temperature Stability: ±0.01°C
Safety Rating: DIN 12876-1 Class III (for use with flammable liquids)
External Temperature Control Capability: Yes
Pump: Variable-speed
External Circulation: Open- or closed-loop
Key Features
- Intuitive 3.75” (9.5 cm) display with touch-pad control
- 4 languages: French, German, Spanish, English
- Swivel 180™ Rotating Controller
- On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
- On-screen prompts
- Automatic performance optimization and specific heat tuning
- Single-point calibration capability

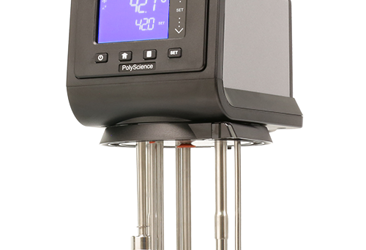

Key Specifications
Working Temperature: 170°C maximum temperature
Temperature Stability: ±0.04°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 2-speed
External Circulation: Closed-loop
Key Features
- Large, universal icon and English display
- Swivel 180™ Rotating Controller
- On-board connectivity: RS-232 serial output
- On-screen prompts
- Automatic performance optimization
- Single-point calibration capability

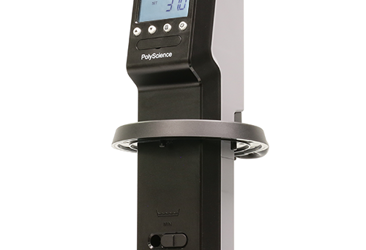

Key Specifications
Working Temperature: 135°C maximum temperature
Temperature Stability: ±0.07°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 1-speed
External Circulation: Closed-loop
Key Features
- Large, universal icon and English display
- On-screen prompts
- Single-point calibration capability
