Immersion Circulators

From the sleek, contemporary profile to the ultra-intuitive interface, we have created a better breed of temperature controllers.

a better breed of temperature controllers

Create a circulating bath using your own vessel or a PolyScience open-bath tank. From the sleek, contemporary profile to the ultra-intuitive interface, we have created a better breed of temperature controllers. Easy to use, informative, and connected, we have designed a stable, reliable and precise partner for your lab bench. PolyScience Circulators have the connections you need to monitor and control your work- from the other side of the room or the other side of the world.

To learn more about our Immersion Circulators & Open Tanks, download our free information guide here!

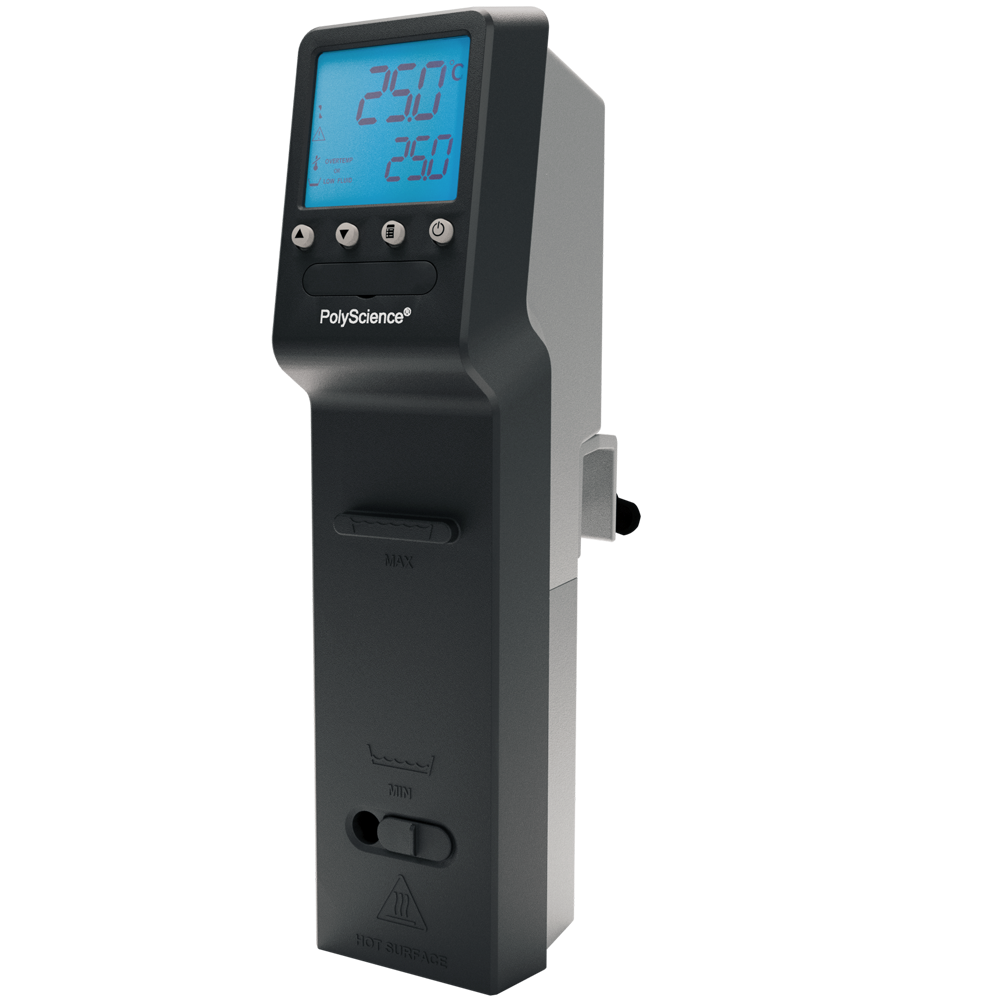

MX Immersion Circulator

Key Specifications

Working Temperature: 135°C maximum temperature
Temperature Stability: ±0.07°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 1-speed

  • Suitable for tank capacities up to 28 liters
  • Clamps securely to both straight and curved tank walls
  • Adjustable flow
  • Integral pump and heater coil protection

The MX Immersion Circulator should only be mounted to tanks with a working depth of 7.25" (18.4 cm) or more. It clamps securely to both straight and curved tank walls.

Key Features

  • Large, universal icon and English display
  • On-screen prompts
  • Single-point calibration capability
  • For laboratory use only

VIEW OUR CONTROLLER GUIDE

Filter By:
8 Products
Heater Wattage (60hz)
1100
N/A
N/A
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
3.60
N/A
N/A
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
3.10
N/A
N/A
N/A
Part Number for 60 Hz Model
MX-CA11B
T13SA1
T28SA1

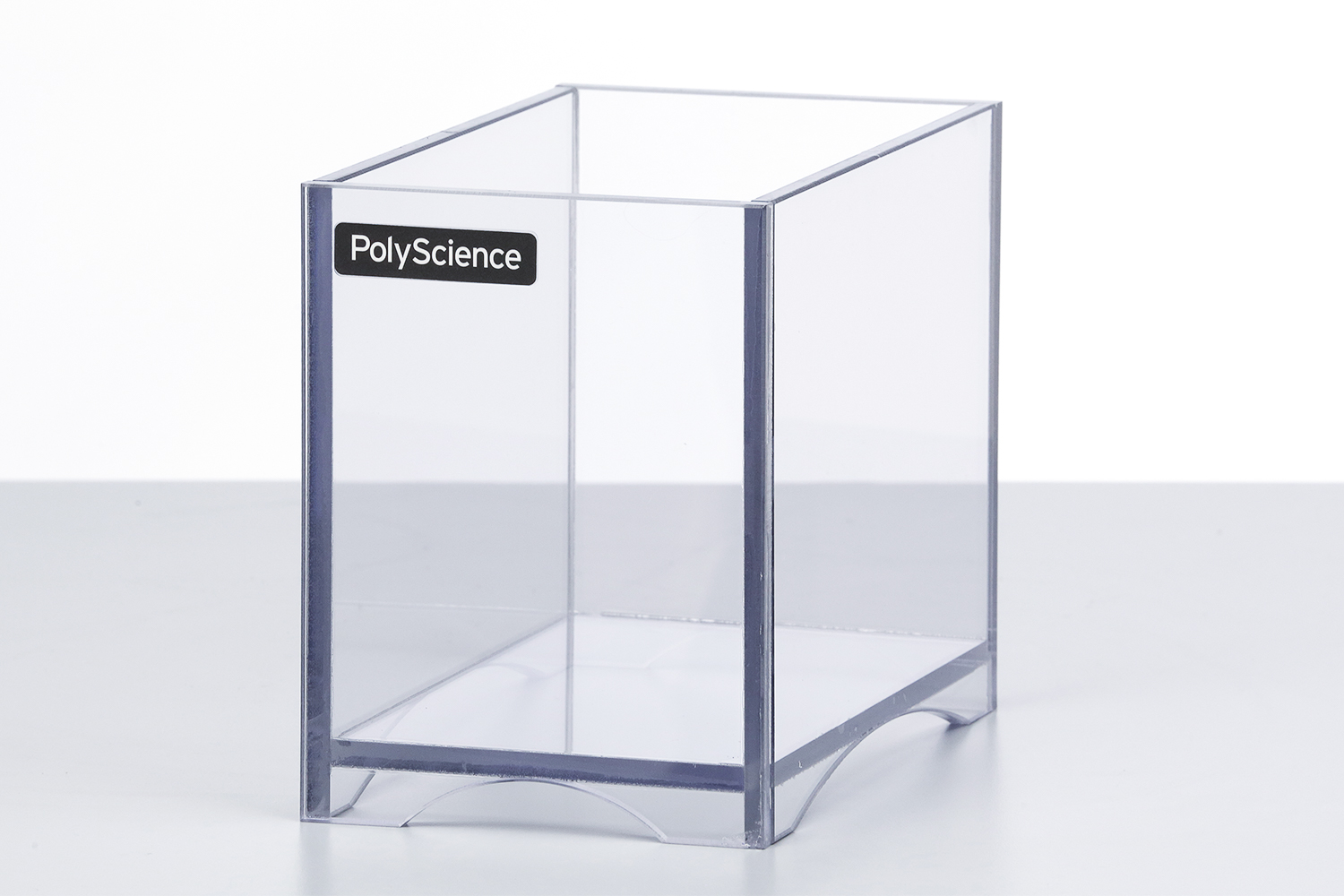

T08PA1
Part Number for 50 Hz Model
MX-CA12E
N/A
N/A
N/A
Temperature Stability °C
±0.07°
N/A
N/A
N/A
Heater Wattage (60hz)
N/A
N/A
N/A
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
N/A
N/A
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
N/A
N/A
N/A
Part Number for 60 Hz Model

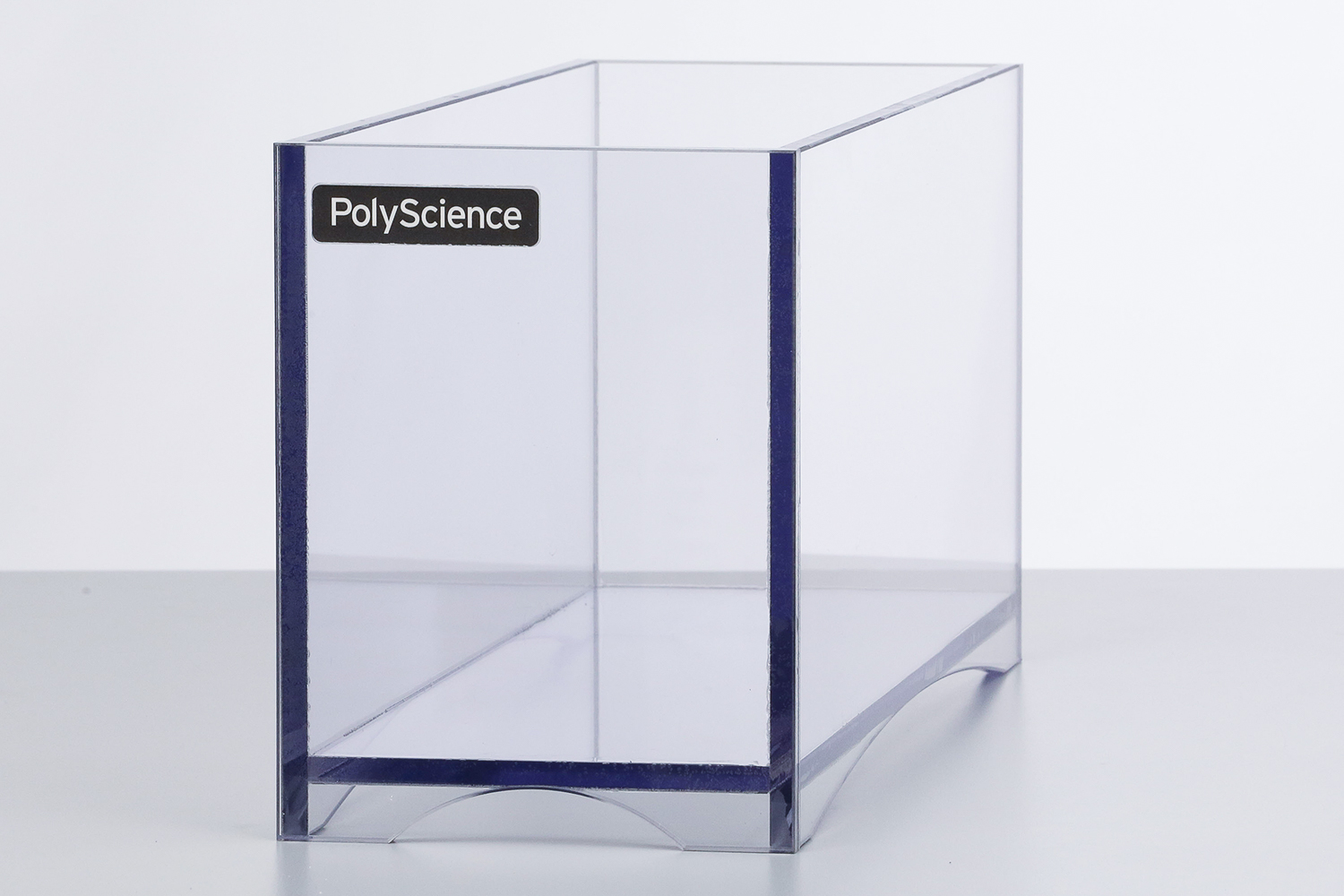

T14PA1

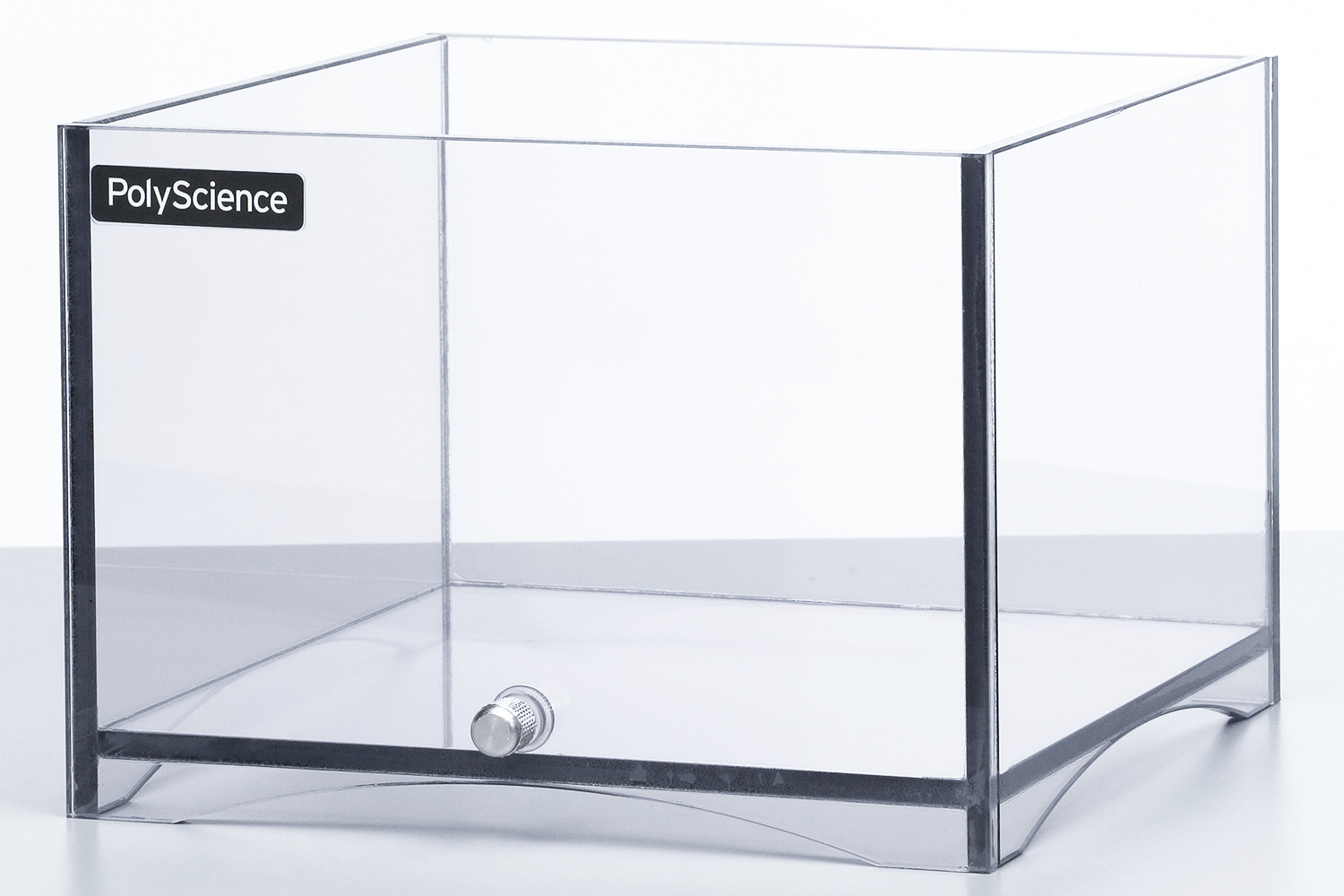

T17PA1

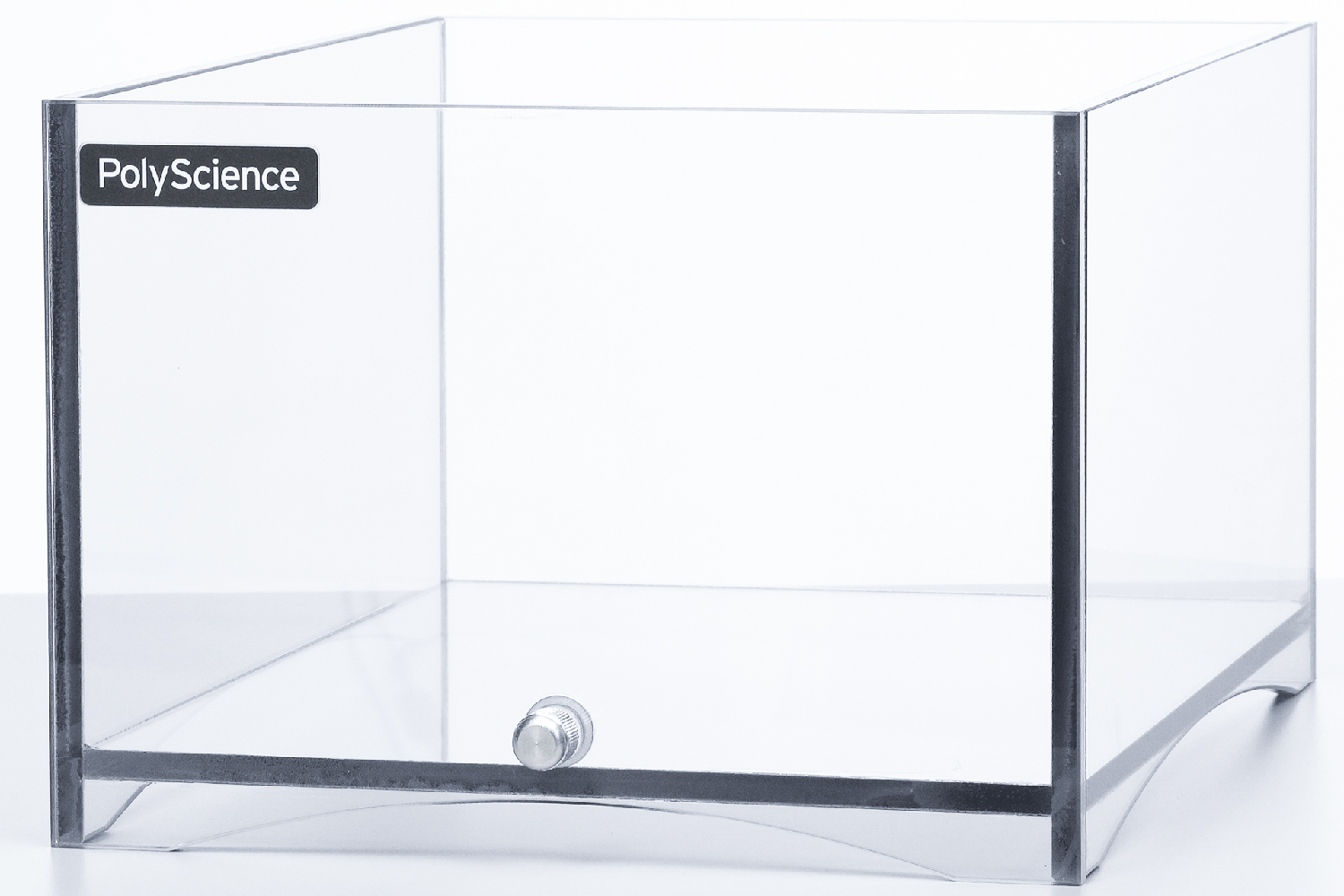

T23PA1

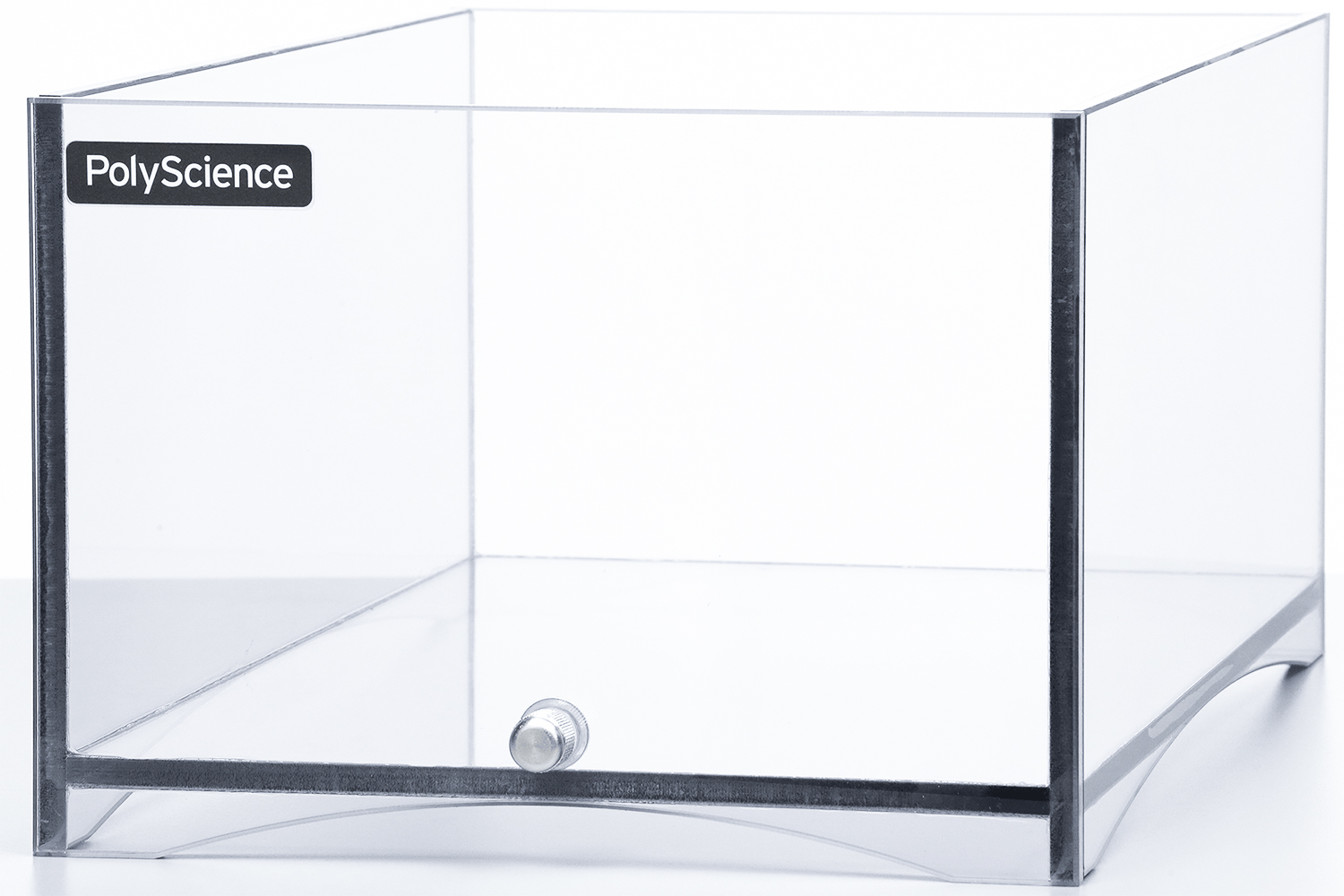

T28PA1
Part Number for 50 Hz Model
N/A
N/A
N/A
N/A
Temperature Stability °C
N/A
N/A
N/A
N/A
More Options Available
Heater Wattage (60hz)
1100
Maximum Pressure Flow Rate (gpm) (60Hz)
3.60
Maximum Pressure Flow Rate (gpm) (50Hz)
3.10
Part Number for 60 Hz Model
MX-CA11B
Part Number for 50 Hz Model
MX-CA12E
Temperature Stability °C
±0.07°
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T13SA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T28SA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T08PA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T14PA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T17PA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T23PA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
Heater Wattage (60hz)
N/A
Maximum Pressure Flow Rate (gpm) (60Hz)
N/A
Maximum Pressure Flow Rate (gpm) (50Hz)
N/A
Part Number for 60 Hz Model
T28PA1
Part Number for 50 Hz Model
N/A
Temperature Stability °C
N/A
