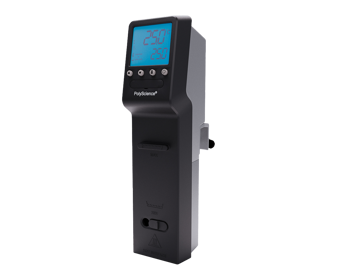

MX Immersion Circulator

Product # MX-CA11B

MX Immersion Circulator

Product # MX-CA11B

Key Features:

Large, universal icon and English display
On-screen prompts
Single-point calibration capability
For laboratory use only
Suitable for tank capacities up to 28 liters

Select Your Voltage:

$1,275.00

QTY

QTY

Resources

Selection Guide

RoHS Certificate of Compliance

REACH Certificate of Compliance

ISO 9001:2015 and 14001:2015 Certificate

Operator's Manual | English

Operator's Manual | French

Operator's Manual | German

Operator's Manual | Spanish

Operator's Manual | Chinese

CE Certificate for Circulators AD, AP, MX, SD

Circulating Bath Quick Start Guide (110-823) MX

Common Specifications

Working Temperature Range °F	Ambient + 20° to 275°
Working Temperature Range °C	Ambient +10° to 135°
Temperature Stability °C	±0.07°
Display	3.25" LCD
Display Resolution (Set)	0.1
Display Resolution (Read)	0.1
Pump Type	Pressure
Pump Speed	One
Flammability Class (DIN 12876-1)	I (NFL)
Low Liquid Level Protection	Yes
Maximum Ambient Temperature °F	95°
Maximum Ambient Temperature °C	35°
Environmental Compliance	RoHS, WEEE
Shipping Weight (pounds)	10.00
Shipping Weight (kilograms)	4.50

60 Hz Only

Part Number for 60 Hz Model	MX-CA11B
Maximum Pressure (psi) (60Hz)	2.30
Maximum Pressure (bar) (60Hz)	0.16
Maximum Pressure Flow Rate (gpm) (60Hz)	3.60
Maximum Pressure Flow Rate (l/min) (60Hz)	13.50
Electrical Requirements (VAC/Hz/Ph/A) (60Hz)	120/60/1/10

50 Hz Only

Part Number for 50 Hz Model	MX-CA12E
Maximum Pressure (psi) (50Hz)	1.80
Maximum Pressure (bar) (50Hz)	0.12
Maximum Pressure Flow Rate (gpm) (50Hz)	3.10
Maximum Pressure Flow Rate (l/min) (50Hz)	11.90
Electrical Requirements (VAC/Hz/Ph/A) (50Hz)	240/50/1/6
