Heated Circulating Baths

Polycarbonate Open Bath Systems with
Advanced Programmable Temperature Controller

Key Specifications

Working Temperature: Ambient +10° to +85°C
Temperature Stability: ±0.01°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
External Temperature Control Capability: Yes
Pump: Variable-speed
External Circulation: Open- or closed-loop

  • DuraTop™ insulating, chemical-resistant top deck
  • Lidded opening for optional cooling coil (17, 23 and 28 liter models)
  • Drain port (17, 23 and 28 liter models)
  • Includes bath cover

Key Features

  • Time/temperature programming (ten 100-step programs)

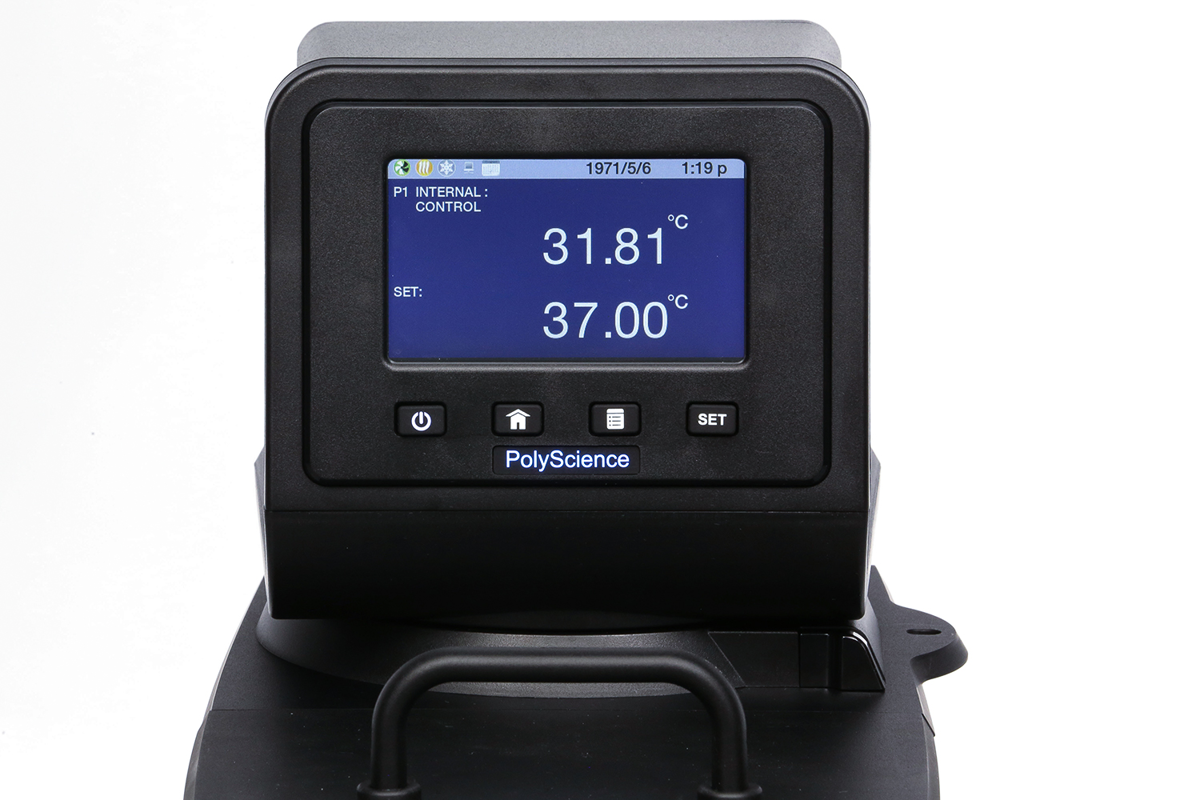

  • Intuitive 4.3” (10.9 cm) SmartTouch display
  • 6 languages: French, German, Spanish, Chinese, Arabic, English
  • Variable speed pump with open- and closed-loop external circulation capability
  • Swivel 180™ Rotating Controller
  • On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
  • Event scheduling (time & date) with real-time clock
  • Review temperature trends for up to 10 days
  • Multiple selectable “home” screens
  • On-screen help
  • Automatic and/or user-adjustable performance optimization
  • 5-point calibration capability

Polycarbonate Tanks

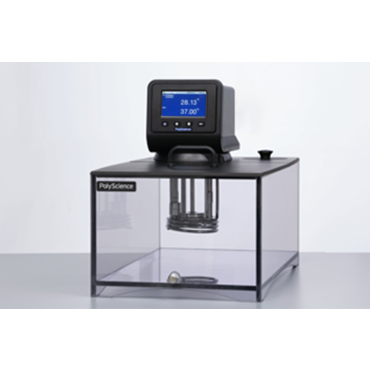

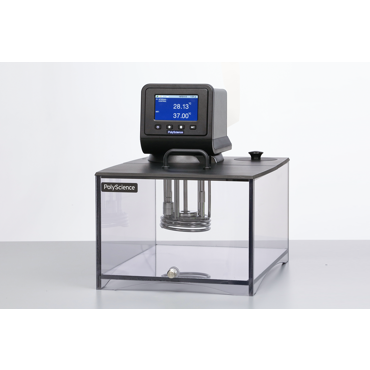

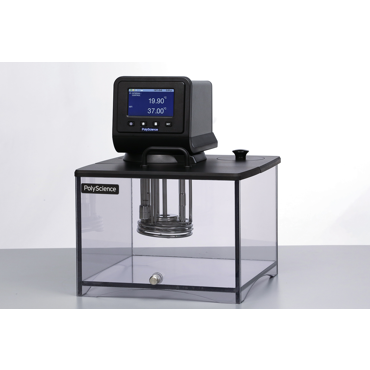

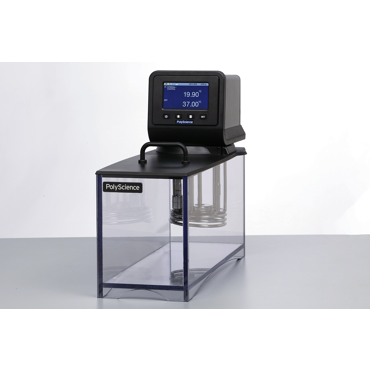

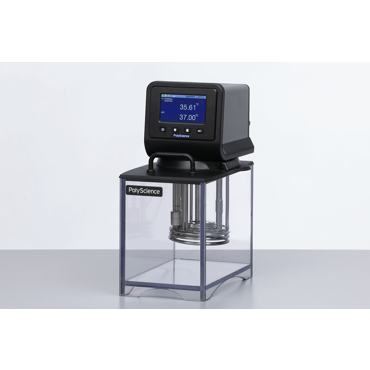

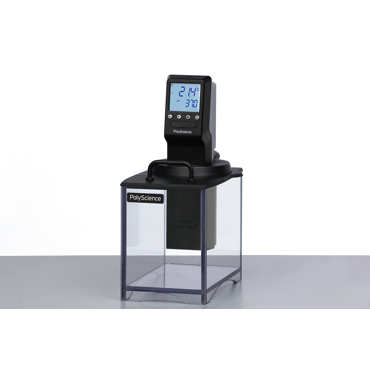

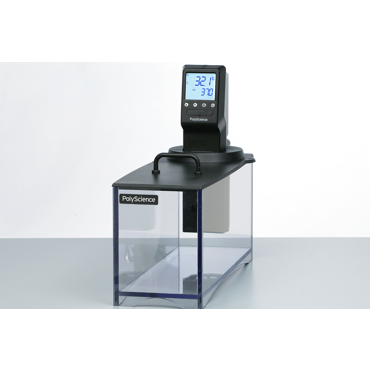

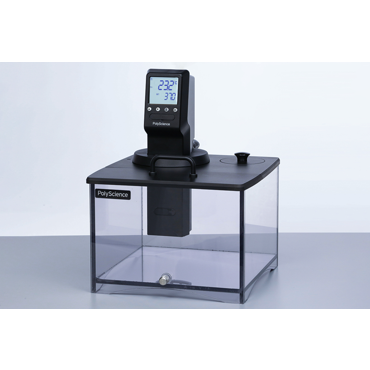

8 Liter Polycarbonate Open Bath system 11 Liter Polycarbonate Open Bath System 14 Liter Polycarbonate Open Bath System 17 Liter Polycarbonate Open Bath System 23 Liter Polycarbonate Open Bath System 28 Liter Polycarbonate Open Bath System
Maximum Temperature 85°C 85°C 85°C 85°C 85°C 85°C
Working Access (LxWxD)
4.1 x 6.1 x 8 in
10.5 x 15.6 x 20.3 cm
8.3 x 6.1 x 8 in
21 x 15.6 x 20.3 cm
12.4 x 6.1 x 8 in
31.4 x 15.6 x 20.3 cm
4.1 x 12 x 8 in
10.5 x 30.5 x 20.3 cm
8.3 x 12 x 8 in
21 x 30.5 x 20.3 cm
12.4 x 12 x 8 in
31.5 x 30.5 x 20.3 cm
Overall Dimensions (LxWxD)
12.7 x 8.2 x 16.3 in
32.2 x 20.8 x 41.3 cm
16.8 x 8.2 x 16.3 in
42.7 x 20.8 x 41.3 cm
20.9 x 8.2 x 16.3 in
53.2 x 20.8 x 41.3 cm
13.9 x 13.6 x 16.3 in
35.3 x 34.5 x 41.3 cm
18 x 13.6 x 16.3 in
45.7 x 34.5 x 41.3 cm
22.1 x 13.6 x 16.3 in
56.2 x 34.5 x 41.3 cm
Part Number
AP08P100-A11B
AP11P100-A11B
AP14P100-A11B
AP17P100-A11B
AP23P100-A11B
AP28P100-A11B

Precise

Maintains temperatures with ±0.01°C stability. Displays actual bath temperature to 1/1000° temperature resolution and temperature trends from 4 minutes to 10 days. For more precise performance, the Advanced Programmable Controller offers advanced fluid tuning, user-settable temperature averaging on the display and temperature control of an external application.

Powerful

Extremely easy to use, the Advanced Programmable Controller’s time/temperature programming allows you to create and edit programs quickly and easily. Settable time or temperature priority ensures programs run as intended. Plus for added convenience, you can preview, share or schedule a program to run automatically. The Controller can store 10 programs of up to 100 steps each.

Connected

Extensive connectivity capabilities enable you to control and communicate with your circulator in a wide variety of ways, including Ethernet, RS-232, addressable RS-485, USB-A and USB-B. For additional communications flexibility, you can even emulate the command protocols of other popular circulating baths and communicate with your circulator using an iPhone®.

Accessible

On-screen help and intuitive touch screen operation make using the Advanced Programmable Controller exceptionally easy. Set-point changes, programming and operational changes are simple and fast.

Safe

Class III flammability rating (per DIN 12876-1), redundant over-temperature protection, high and low temperature limits and alarms alert you instantly to conditions that fall outside normal operating parameters. Lockout capability prevents unauthorized operational changes.
