Body
|
-30, 15 L Ref. Circulator
|
|
Controller Type
|
Standard Digital
|
|

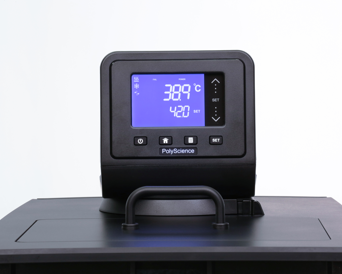

Display
|
3.75" Touch-Pad LCD
|
|
Working Temperature Range °C
|
-30° to 170°
|
|
Working Temperature Range °F
|
-22° to 338°
|
|
Flammability Class (DIN 12876-1)
|
I (NFL)
|
|
Nominal Cooling Capacity @ +20C (W)
|
915
|
|
Reservoir Capacity (gallons)
|
3.96
|
|
Reservoir Capacity (liters)
|
15
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Working Temperature Range °F
|
-22° to 338°
|
|
Working Temperature Range °C
|
-30° to 170°
|
|
Nominal Cooling Capacity @ +20C (W)
|
915
|
|
Reservoir Capacity (gallons)
|
3.96
|
|
Reservoir Capacity (liters)
|
15
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Reservoir Cover
|
Included
|
|
DuraTop
|
Yes
|
|
Working Access (L x W x D) (inches)
|
8.35 x 10.88 x 5.5 in
|
|
Working Access (L x W x D) (cm)
|
21.2 x 27.6 x 14 cm
|
|
Temperature Stability °C
|
±0.04°
|
|
Display
|
3.75" Touch-Pad LCD
|
|
Display Resolution (Set)
|
0.1
|
|
Display Resolution (Read)
|
0.1
|
|
Pump Type
|
Pressure
|
|
Pump Speed
|
Two
|
|
Over-Temperature Protection / Failsafe Heater Control
|
Yes
|
|
Low Liquid Level Protection
|
Yes
|
|
WhisperCool Environmental Control Technology
|
Yes
|
|
Reservoir Drain
|
Yes
|
|
Maximum Ambient Temperature °F
|
95°
|
|
Maximum Ambient Temperature °C
|
35°
|
|
Overall Dimensions (L x W x D) (inches)
|
22.4 x 14.5 x 26.9 in
|
|
Overall Dimensions (L x W x D) (cm)
|
56.9 x 36.8 x 68.3 cm
|
|
Refrigerant
|
R404A
|
|
Environmental Compliance
|
ROHS, WEEE
|
|
Shipping Weight (pounds)
|
118.00
|
|
Shipping Weight (kilograms)
|
53.50
|
