Heated Circulating Baths
If it needs heat, it needs PolyScience. Choose from almost 50 different solutions to your laboratory’s liquid heating needs – from a simple Immersion Circulator to economical Open Bath Systems to full-featured Circulating Baths with ramp and soak capability.
Immersion Circulators
Create a circulating bath using your own vessel or a PolyScience open-bath tank.

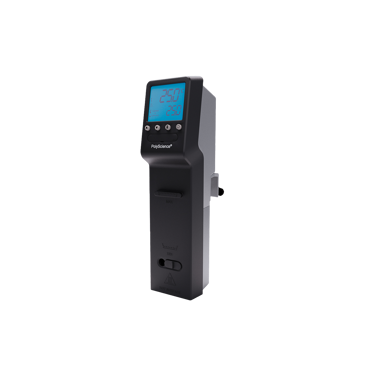

MX Immersion Circulator
Key Specfications
Working Temperature: 135°C maximum temperature
Temperature Stability: ±0.07°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 1-speed
- Suitable for tank capacities up to 28 liters
- Clamps securely to both straight and curved tank walls
- Adjustable flow
- Integral pump and heater coil protection
The MX Immersion Circulator should only be mounted to tanks with a working depth of 7.25" (18.4 cm) or more. It clamps securely to both straight and curved tank walls.
Key Features
- Large, universal icon and English display
- On-screen prompts
- Single-point calibration capability
- For laboratory use only
LX Immersion Circulator
Key Specfications
Working Temperature: 98°C maximum temperature
Temperature Stability: ±0.07°C
Safety Rating: DIN 12876-1 Class I (for use with non-flammable liquids)
Pump: 1-speed
- Suitable for tank capacities to 20 liters
- Clamps securely to both straight and curved tank walls
- Integral pump and heater protection
Key Features
- Large universal icon display
- Display actual and set point temperature simultaneously
- Timer
- For laboratory use only
Set It and Forget It Operation: Simple intuitive operation makes the LX immersion circulator ideal for basic liquid heating applications.
Built-in Timer: Integrated timer can be for time periods from 5 minutes to 99 hours. The remaining time and set point temperature are displayed alternately while the timer is running.
Immersion Circulators
| MX Immersion Circulator | LX Immersion Circulator | |
|---|---|---|
| Maximum Reservoir Capacity | 28 liters | 20 liters |
| Maximum Temperature | Ambient +10° to 135° | Ambient +10° to 98°C |
| Stability | ±0.07° | ±0.07° |
| Heater | 1100 W | 1100 W |
| Maximum Flow Rate (60Hz/50Hz) | 13.50/11.90 (l/min) | 6.00/6.00 (l/min) |
| Maximum Pressure (60Hz/50Hz) | 2.30/1.80 (psi) | 0.72/0.72 (psi) |
| Part Number (60Hz) | MX-CA11B | LXC-9A11B |
| Part Number (50Hz) | MX-CA12E | LXC-9A12E |

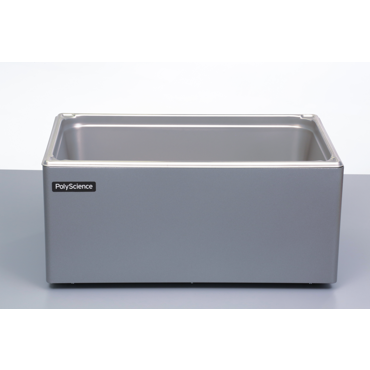

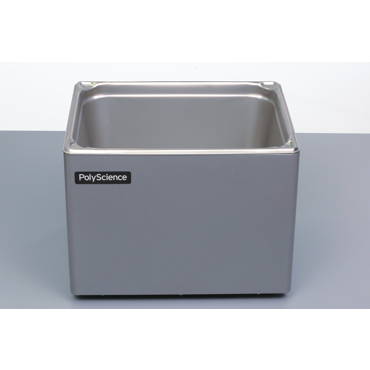

Stainless Steel Tanks
| 13 Liter Stainless Steel Open Tank | 28 Liter Stainless Steel Open Tank | |
|---|---|---|
| Maximum Temperature | 150°C | 150°C |
| Working Access (LxWxD) |
9 x 6.5 x 8 in 22.9 x 16.5 x 20.3 cm |
17.5 x 9.5 x 8 in 44.5 x 24.1 x 20.3 cm |
| Overall Dimensions (LxWxD) |
12.63 x 10.38 x 9.62 in 32.1 x 28.9 x 24.4 cm |
20.87 x 12.87 x 9.62 in 53 x 32.7 x 24.4 cm |
| Part Number |
T13SA1 |
T28SA1 |

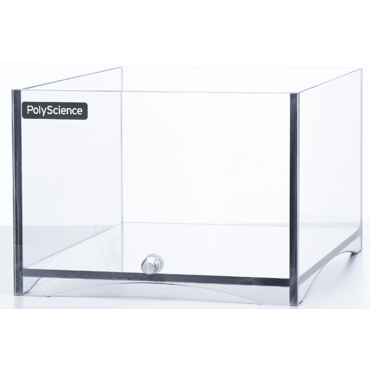

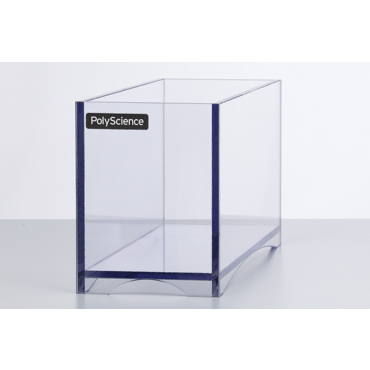

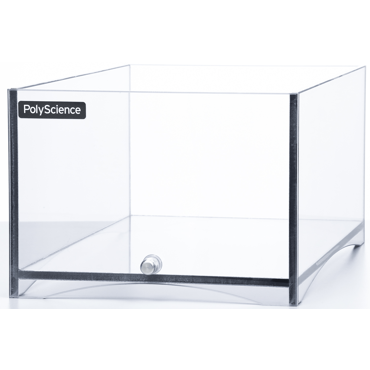

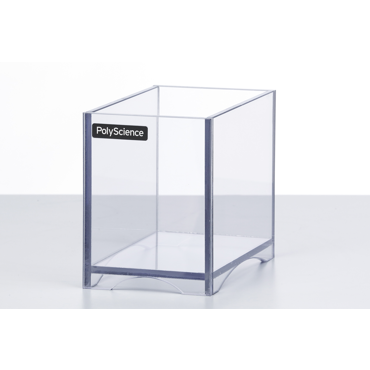

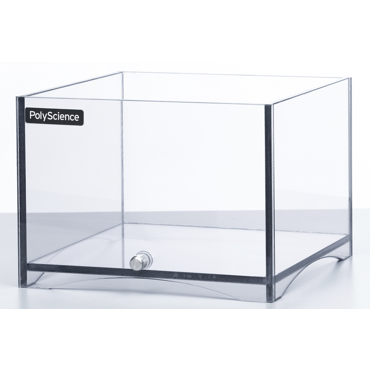

Polycarbonate Tanks
| 8 Liter Polycarbonate Open Tank | 11 Liter Polycarbonate Open Tank | 14 Liter Polycarbonate Open Tank | 17 Liter Polycarbonate Open Tank | 23 Liter Polycarbonate Open Tank | 28 Liter Polycarbonate Open Tank | |
|---|---|---|---|---|---|---|
| Maximum Temperature | 85°C | 85°C | 85°C | 85°C | 85°C | 85°C |
| Working Access (LxWxD) |
11.2 x 6.13 x 8 28.4 x 15.6 x 20.3 |
15.3 x 6.13 x 8 38.9 x 15.6 x 20.3 |
19.4 x 6.13 x 8 49.3 x 15.6 x 20.3 |
12.3 x 12 x 8 31.2 x 30.5 x 20.3 |
16.4 x 12 x 8 41.7 x 30.5 x 20.3 |
20.6 x 12 x 8 52.3 x 30.5 x 20.3 |
| Overall Dimensions (LxWxD) |
11.9 x 6.87 x 9.13 in 30.2 x 17.4 x 23.2 cm |
16 x 6.87 x 9.13 in 40.6 x 17.4 x 23.2 cm |
20.2 x 6.87 x 9.13 in 51.3 x 17.4 x 23.2 cm |
13.8 x 12.75 x 9.13 in 35.1 x 32.4 x 23.2 cm |
17.9 x 12.75 x 9.13 in 45.5 x 32.4 x 23.2 cm |
21.1 x 12.75 x 9.13 in 56.1 x 32.4 x 23.2 cm |
| Part Number |
T08PA1 |
T11PA1 |
T14PA1 |
T17PA1 |
T23PA1 |
T28PA1 |
