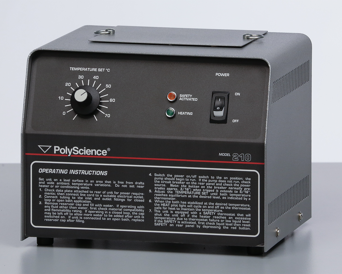

Model 210 Heated Recirculator

Product # 040300

Model 210 Heated Recirculator

Product # 040300
Key Features:
  • Low-cost pumping and heating for closed-loop applications
  • Provides accurate control within a frequently used temperature range
  • Ideal for applications such as thawing plasma, tempering photographic solutions or circulating to an external device
  • Over-Temperature Protection
  • Failsafe Heater Control

Common Specifications

Working Temperature Range °F Ambient to 158°
Working Temperature Range °C Ambient to 70°
Temperature Stability °C ±0.2°
Pump Type Centrifugal
Pump Speed Single
Over-Temperature Protection / Failsafe Heater Control Yes
Low Liquid Level Protection Yes
Maximum Ambient Temperature °F 95°
Maximum Ambient Temperature °C 35°
Shipping Weight (pounds) 12.00
Shipping Weight (kilograms) 5.40

60 Hz Only

Part Number for 60 Hz Model 040300
Maximum Pressure (psi) (60Hz) 2.00
Maximum Pressure (bar) (60Hz) 0.13
Maximum Pressure Flow Rate (gpm) (60Hz) 3.00
Maximum Pressure Flow Rate (l/min) (60Hz) 11.40
Included Hardware (60Hz) Tubing and clamps
Heater Wattage (60hz) 750

50 Hz Only

Part Number for 50 Hz Model 040301
Maximum Pressure (psi) (50Hz) 1.40
Maximum Pressure (bar) (50Hz) 0.10
Maximum Pressure Flow Rate (gpm) (50Hz) 2.30
Maximum Pressure Flow Rate (l/min) (50Hz) 9.00
