Body
|
-25, 45 L Ref. Circulator
|
|
Controller Type
|
Advanced Digital
|
|

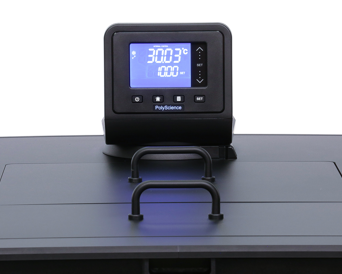

Display
|
3.75" Touch-Pad LCD
|
|
Languages Supported
|
4: French, German, Spanish, English
|
|
Working Temperature Range °C
|
-25° to 135°
|
|
Working Temperature Range °F
|
-13° to 275°
|
|
External Temperature Control Capability
|
Yes
|
|
Flammability Class (DIN 12876-1)
|
III (FL)
|
|
Nominal Cooling Capacity @ +20C (W)
|
1400
|
|
Reservoir Capacity (gallons)
|
11.88
|
|
Reservoir Capacity (liters)
|
45
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Working Temperature Range °F
|
-13° to 275°
|
|
Working Temperature Range °C
|
-25° to 135°
|
|
Nominal Cooling Capacity @ +20C (W)
|
1400
|
|
Reservoir Capacity (gallons)
|
11.88
|
|
Reservoir Capacity (liters)
|
45
|
|
Reservoir/Tank Material
|
Stainless Steel
|
|
Reservoir Cover
|
Included
|
|
DuraTop
|
Yes
|
|
Working Access (L x W x D) (inches)
|
21.6 x 15.68 x 5.5 in
|
|
Working Access (L x W x D) (cm)
|
54.9 x 39.8 x 14 cm
|
|
Temperature Stability °C
|
±0.01°
|
|
Display
|
3.75" Touch-Pad LCD
|
|
Display Resolution (Set)
|
0.01
|
|
Display Resolution (Read)
|
0.01
|
|
Pump Type
|
Pressure/Suction
|
|
Pump Speed
|
Variable
|
|
Over-Temperature Protection / Failsafe Heater Control
|
Yes
|
|
Low Liquid Level Protection
|
Yes
|
|
WhisperCool Environmental Control Technology
|
Yes
|
|
Reservoir Drain
|
Yes
|
|
Included Software
|
PolyTemp ViewerUSB driver
|
|
Maximum Ambient Temperature °F
|
95°
|
|
Maximum Ambient Temperature °C
|
35°
|
|
Overall Dimensions (L x W x D) (inches)
|
35.8 x 22.4 x 42.1 in
|
|
Overall Dimensions (L x W x D) (cm)
|
90.9 x 56.8 x 107 cm
|
|
Refrigerant
|
R134a
|
|
Environmental Compliance
|
ROHS, WEEE
|
|
Shipping Weight (pounds)
|
180.00
|
|
Shipping Weight (kilograms)
|
81.50
|
